PGA Sockets: ZIF & LIF Solutions for High-Performance Processors

Jiatel provides advanced Pin Grid Array (PGA) Sockets, critical for reliably interfacing second- through fifth-generation processors from Intel and AMD. Our portfolio includes both Zero Insertion Force (ZIF) and Low Insertion Force (LIF) PGA sockets, engineered to protect delicate processor pins, facilitate upgrades, and ensure robust connections in high-performance computing.

1. ZIF & LIF PGA Sockets: Optimizing Processor Integration

We offer specialized PGA sockets tailored for different integration and testing needs, ensuring both ease of use and long-term reliability.

Zero Insertion Force (ZIF) PGA Sockets

ZIF PGA sockets make installing and removing microprocessor chips easy. They eliminate the need for manual force, which prevents bent pins.

• Effortless Installation: A lever mechanism opens internal contacts. You simply drop the processor into place. No force is needed.

• Secure Connection: Closing the lever (or engaging a screw) secures the chip’s pins. This ensures a stable connection.

• Broad Compatibility: ZIF PGA sockets support a wide range of pin counts, often up to nearly a thousand positions. They are ideal for many generations of Intel and AMD processors.

• Benefits: This setup protects delicate pins. It also speeds up processor swaps for desktops, servers, and test benches.

Low Insertion Force (LIF) PGA Sockets

LIF PGA sockets suit applications needing frequent processor insertion and removal. These are perfect for prototype testing or lab environments.

• Minimized Stress: The low insertion force design reduces stress on both the socket and processor pins. This lowers the chance of bent pins. It also extends component longevity.

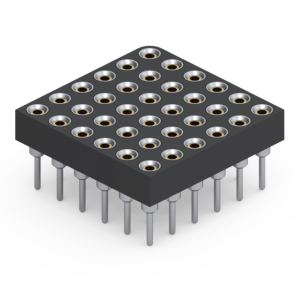

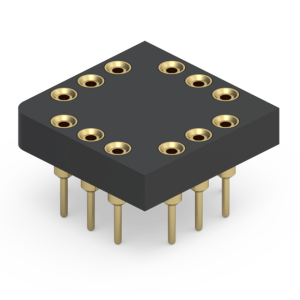

• Precision Contacts: These sockets use precision-machined contacts. They often pair outer sleeves with refined inner contacts. This ensures reliability and tight connections.

• Robust Mounting: Through-hole mounting is standard. This makes them a stable choice for board attachment.

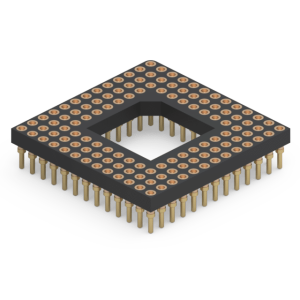

• Test-Ready: LIF PGA sockets are available in custom arrays. They support thousands of pins. This accommodates complex processors and test scenarios.

2. Array Sizes, Actuation Methods & Customization

Jiatel offers extensive flexibility in PGA socket design, from standard configurations to complex custom arrays.

• Array Sizes: PGA ZIF sockets accommodate up to 989 positions. Custom arrays can support well over a thousand pin positions.

• Actuation Methods: Options include single lever, screwdriver, and hex wrench activation styles. This ensures compatibility with diverse design and assembly needs.

• Customization Options: Our PGA socket arrays are not limited to standard configurations. Custom layouts can be tailored to your exact requirements. Whether for high-performance desktops, compact notebooks, or robust server boards, we offer flexible PGA socket options. They meet modern computing needs.

3. Benefits, Applications & Compliance

Jiatel’s PGA sockets offer significant advantages, ensuring performance and adherence to global standards.

Core Benefits & Typical Applications

• Cost-Effective & Simplified Board Design: Using sockets is more cost-effective. It also simplifies board design.

• High Pin Density: Sockets allow for more pins per integrated circuit. This is an advantage over older packages like DIP.

• Typical Applications: Our PGA sockets are designed for Intel- and AMD-based microprocessor packages. They are used in desktop PCs, notebooks, and servers.

Enhanced Ultraportables

PGA sockets are well-suited for designing enhanced ultraportable devices. Think featherweight laptops and slim notebooks. Their low profile and efficient use of board space allow engineers to pack more processing power into smaller chassis.

• Maximizing Space: Compact footprints make room for memory modules and SSDs in slim housings.

• Improved Upgradeability: Processors can be replaced or upgraded. This offers greater flexibility.

• Robust Connections: Reliable pin-based interfaces maintain signal integrity for devices on the go.

Compliance and Environmental Standards

Our PGA sockets adhere to current environmental and safety regulations.

• RoHS Compliant: Most PGA sockets are fully compliant with European Union RoHS directives. They restrict hazardous substances.

• Global Standards: Products meet or exceed global standards for material safety and recyclability.

• ELV Compatibility: Many PGA sockets are out of scope for EU ELV (End of Life Vehicles) regulations. This ensures compatibility with consumer electronics and automotive systems.

Contact Jiatel today to discuss your PGA socket requirements. Our experts will help you find or design the perfect solution for your high-performance computing needs.
