Abstract: Selecting the correct pogo pin connector geometry is the primary factor in overcoming signal integrity issues and mechanical set-loss. At Jiatel, we engineered our pins to exceed 100,000 cycles, utilizing Beryllium Copper (BeCu) for high-vibration industrial applications.
1. Mounting Evolution: Optimizing PCB Footprints
We engineered five distinct mounting architectures to solve specific spatial and mechanical challenges in modern hardware design:
- SMT / SMD Pogo Pins: Designed for high-speed pick-and-place automation. Our SMT pins feature superior co-planarity to ensure zero-defect soldering on high-density PCBs.
- Through-Hole (DIP) Technology: Engineered with a machined tail for maximum mechanical shear strength. Ideal for rugged docking stations where lateral force is a concern.
- Right Angle Probes: Optimized for horizontal mating. We reduced the profile height to suit ultra-thin wearables and AR/VR smart glasses.

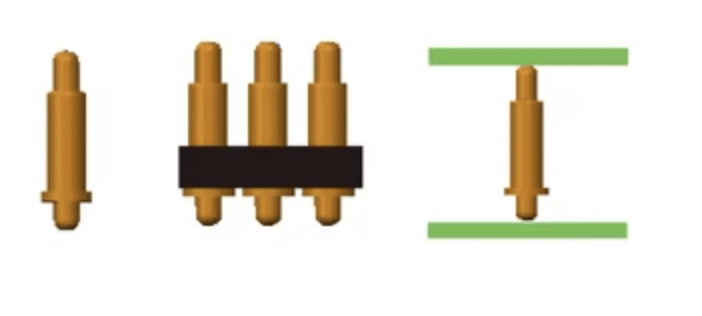

- Double-Headed (Floating) Pins: Feature plungers at both ends. This architecture acts as a dynamic bridge between two PCBs, effectively compensating for assembly tolerances.
- Solder Cup (Wire Attachment): Specifically designed for cable-to-board charging solutions, ensuring a robust connection that avoids wire fatigue.
2. Jiatel Engineering Standards vs. Generic Probes
| Technical Parameter | Standard Catalog (e.g. Keystone) | Jiatel Engineering Spec |
|---|---|---|
| Contact Resistance | < 50mΩ | < 30mΩ (Customizable to <10mΩ) |
| Durability (Cycles) | 10,000 Cycles | 100,000 to 1,000,000+ Cycles |
| Plating Thickness | 0.1u” – 1.0u” Au | Minimum 3u” Gold over Nickel (Standard) |
| Material Integrity | Brass / Phosphor Bronze | BeCu Heat-Treated Springs (High Fatigue) |
3. Industrial Implementation Matrix
Our pogo pin connectors are tested under extreme conditions for the following sectors:
- Medical Devices: Signal-stable contacts for portable diagnostics (Zero Signal Dropout).
- Automotive & EV: OBD-II diagnostic interfaces and BMS battery sensing.
- Industrial IoT: High-reliability docking for handheld scanners and sensor arrays.
📚 Engineering Resource Hub
Avoid 16-week lead times. Jiatel provides 2D/3D CAD data and footprints for immediate integration into your layout.
[Request 2D PDF / 3D STEP Models] | [Get a Free DFM Selection Review]
POGO PIN STRUCTURES AND MATERIALS
TYPES OFPOGO PIN CONNECTORS
1、 SMT type

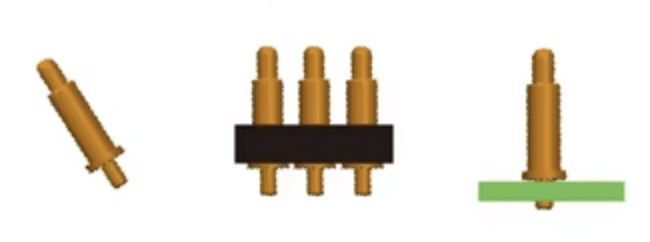

2、DIP type

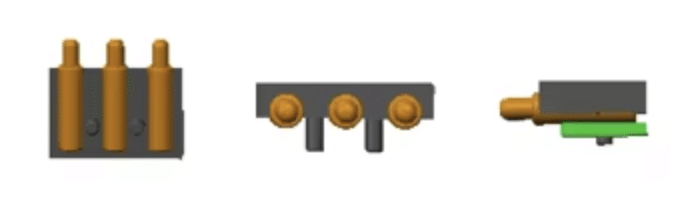

3、 Side-mounted

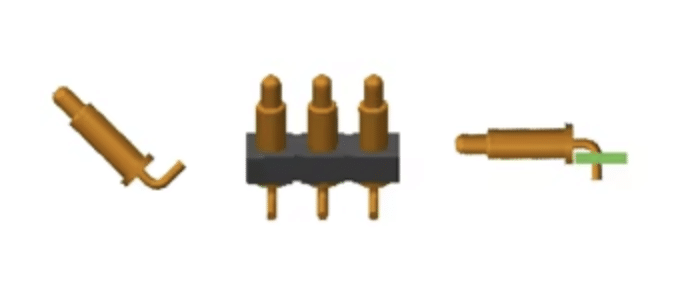

4、Bend type
