IDC Flat Cable
Custom IDC Flat Ribbon Cable Assemblies for High-Density Interconnects

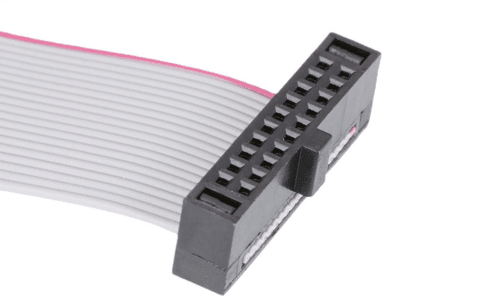

Jiatel is one of the leading manufacturers of PCB connectors and cable assemblies in China. Our Custom IDC Flat Ribbon Cable Assemblies are the ideal solution for modern electronic designs requiring high-density, rapid termination, and minimal physical profile. We provide the versatility and reliability needed to maximize board space without compromising signal integrity.
Technical Specifications and Custom Configurations
Our comprehensive offerings cover the industry’s most common pitches and termination types, ensuring compatibility with a wide range of devices.
| Feature Category | Jiatel Specifications | Key Advantage to Engineers |
| Pitch Options | 0.635mm, 1.0mm, 1.27mm, 2.00mm, 2.54mm. | Versatility: Wide range of pitches to suit diverse application needs. |
| Profile Design | Exceptionally low-profile designs (as low as 5.08mm height). | Space Saving: Allows flexible installation in extremely tight spaces. |
| Terminations | IDC Socket, IDC Plug, FD, XH, PH Housing, and Open Ends. | Flexibility: Supports simple board-to-board connections or complex housing integration. |
| Header Mating | Mating shrouded headers, ejector terminal strips, and locking latches. | Reliability: Secure, reliable connections suitable for rugged applications. |
| Cable Specs | UL2651 standards; AWG28 or AWG30; Custom lengths and pin counts. | Compliance & Customization: UL-certified materials with support for custom pinouts. |
Uncompromising Quality and Service Promise
We tailor each assembly to your specific needs, ensuring high reliability and performance.
Quality and Compliance
- Testing: We perform Open and Short circuit testing for each piece before delivery.
- Materials: All assemblies are manufactured using UL-certified cables and strictly adhere to ROHS compliance.
- Durability: Optional strain relief is available for enhanced durability and cable longevity.
Speed and Support
- Samples: Sample service takes 5 to 8 days.
- Production: Production lead time is typically 2 weeks.
- Warranty: We offer a 2 years quality guarantee.
- Engineering Confirmation: Before making the IDC row, our engineering team carefully checks the requirements for the direction of the bumps with the customer and sends drawings for final confirmation.
Whether you need a simple flat ribbon for board-to-board connections or a custom cable assembly with specific pinouts and strain relief, our engineering team can help tailor the ideal solution for your project.
Contact our sales or technical team today to discuss your custom configuration.
AA / AAA Battery Holder Selection
| Keystone P/N | Type | Mount / Contact | Cell | Jiatel Equivalent |
|---|---|---|---|---|
| 1022 | Dual AAA holder | SMT | 2 x AAA | View |
| 5228 | Dual AA spring contact | — | 2 x AA | View |
| 92 | Battery clip | PC pin (THM) | AA / 1/2AA | View |
| 5227 | Dual solid contact | — | 2 x AA | View |
| 5220 | Spring contact | Solder tab | A / AA / CR2 | View |
| 5202 | Spring contact | Slide-in | A / AA / CR2 | View |
| 56 | Battery contact | SMT | AAA / N / A23 | View |
| 57 | Battery contact | SMT | AA / CR2 | View |
| 5221 | Solid contact | Slide-in | A / AA / CR2 | View |
| 5219 | Solid contact | Solder tab | A / AA / CR2 | View |
Keystone part numbers are referenced for cross-reference only; Jiatel is not affiliated with Keystone Electronics.
Battery Clips & Spring Contacts Selection
Contact type drives retention force and assembly method. Match mount to your PCB process.
| Keystone P/N | Type | Mount / Contact | Cell | Jiatel Equivalent |
|---|---|---|---|---|
| 5228 | Dual AA spring contact | — | 2 x AA | View |
| 92 | Battery clip | PC pin (THM) | AA / 1/2AA | View |
| 5227 | Dual solid contact | — | 2 x AA | View |
| 5222 | Spring contact | Slide-in | AA | View |
| 56 | Battery contact | SMT | AAA / N / A23 | View |
| 5201 | Spring contact | Solder tab | A / AA | View |
| 5223 | Solid contact | Solder tab | AA | View |
Keystone part numbers are referenced for cross-reference only; Jiatel is not affiliated with Keystone Electronics.
OBD-II Harness Selection — 46 stock assemblies
Pick by interface and fitment. Figure gives the vehicle-side connector to the 16-pin OBD-II end. 15 adapters · 12 splitters · 8 cables · 5 connectors · 4 extensions · 1 jumper · 1 tester.
Request 2D Drawing & PinoutRequest a Custom Harness Quote
| Type | Model | Interface / config | Fitment | Detail |
|---|---|---|---|---|
| Adapter | Honda Motorcycle OBD2 16Pin to 6Pin Adapter Cable | 16-pin → 6-pin | Honda | View |
| Universal ECU Diagnostic Cable | — | Universal | View | |
| 12-Pin OBD Adapter Cable for 2012-2015 Tesla Model S & Mod | 12-pin | Tesla | View | |
| 14-Pin to 16-Pin OBD2 Adapter Cable for Mercedes-Benz Spri | 14-pin → 16-pin | Mercedes, Sprinter | View | |
| 20-Pin to 16-Pin OBD2 Adapter Cable for Tesla Model S & Mo | 20-pin → 16-pin | Tesla | View | |
| 6-Pin to OBD2 Adapter Cable for Harley-Davidson Motorcycle | 6-pin | Harley | View | |
| Benelli 6-Pin to 16-Pin OBD2 Adapter Cable for Motorcycle | 6-pin → 16-pin | Benelli | View | |
| Ducati 4-Pin to 16-Pin OBD2 Adapter Cable for Motorcycle D | 4-pin → 16-pin | Ducati | View | |
| Honda 3-Pin to 16-Pin OBD2 Adapter Cable | 3-pin → 16-pin | Honda | View | |
| J1708 6-Pin to OBD2 16-Pin Female Truck Adapter Cable | 6-pin → 16-pin · J1708 · M · F | — | View | |
| Mercedes-Benz 38-Pin to 16-Pin OBD2 Adapter Cable | 38-pin → 16-pin | Mercedes | View | |
| Mitsubishi 12-Pin to 16-Pin OBD2 Adapter Cable | 12-pin → 16-pin | Mitsubishi | View | |
| OBD2 Female Adapter Cable for Mercedes-Benz & Iveco Diagno | M · F | Mercedes, Iveco | View | |
| Polaris 8-Pin to 16-Pin OBD2 Diagnostic Adapter Cable | 8-pin → 16-pin | Polaris | View | |
| Tesla OBD2 Adapter | — | Tesla | View | |
| Cable | Audi 2x2 to 16-Pin OBD2 Diagnostic Cable for VAG Vehicles | 16-pin | Audi, VAG | View |
| BENZ SPRINTER 14PIN to 16PIN OBD2 Cable | 14-pin → 16-pin | Mercedes, Sprinter | View | |
| BMW ENET Cable | OBD2 to RJ45 Diagnostic Harness | RJ45 | BMW | View | |
| OBD2 16Pin Open-End Cable | 16-pin · Open end | — | View | |
| Best-Selling Custom J1939 9-Pin to OBD2 16-Pin Diagnostic | 9-pin → 16-pin · J1939 9-pin | Cummins | View | |
| Custom Truck Diagnostic Cable | 9-pin · DB62 D-SUB · J1939 9-pin · Deutsch 9-pin | Custom | View | |
| OBD2 16Pin to 6Pin Harley, Kawasaki, Yamaha, Suzuki Motorc | 16-pin → 6-pin | Harley, Kawasaki, Yamaha, Suzuki | View | |
| OBD2 Dashcam Power Cable | Plug-in | — | View | |
| Connector | Dongfeng Heavy-Duty Truck OBD Diagnostic Cable | 16-pin → 9-pin · M | Cummins, Dongfeng | View |
| Large-Size OBD2 Male Connector Housing | M | — | View | |
| OBD Copper Pin Connector Housing | — | Mitsubishi, Subaru | View | |
| OBD2 Male Connector | M | — | View | |
| Universal 6-Pin Diagnostic to JST 04R-JWPF-VSLE-S Connecto | 6-pin · JST | Universal | View | |
| Extension | For BMW Hidden Features Coding | RJ45 | BMW | View |
| OBD 8-Pin Switch Extension Cable with Bluetooth Connector | 8-pin | — | View | |
| OBD2 One-to-Two Extension Cable for Cars: Volkswagen, Audi | 1→2 | Audi, VW, Skoda | View | |
| OBD2 Extension Cable | M · F | — | View | |
| Jumper | K+CAN Universal Jumper Cable for ECU Bench Programming | — | Universal | View |
| Splitter | OBD2 16-Pin Male-to-Female Y-Splitter Extension Cable | 16-pin · M · F · Y-type | Universal | View |
| Custom Tesla Model 3/Y OBD2 Diagnostic Harness | 26-pin → 16-pin | Tesla | View | |
| L-Shaped 90-Degree OBD2 Splitter Extension Cable | 16-pin · 90° L · 0.3 m | — | View | |
| L-Shaped OBD2 One-to-Three Splitter Extension Cable | 1→3 · 90° L | — | View | |
| L-Shaped OBD2 Splitter Extension Cable | 1→2 · 90° L | — | View | |
| L-Shaped OBD2 Splitter Extension Cable | 16-pin · 1→2 · 90° L · Flat ribbon | — | View | |
| OBD2 Flat Splitter Extension Cable | 16-pin · 1→3 | — | View | |
| OBD2 Splitter Cable | 1→2 | — | View | |
| OBD2 Splitter Extension Cable | 16-pin · 1→2 · 0.15 m | — | View | |
| OBD2 Y Splitter Extension Cable | 16-pin · 1→2 · Y-type | Toyota, Kia | View | |
| OBD2 to 8-Port DB9 Female Splitter Cable | DB9 · M · F · 8-port | — | View | |
| Universal OBD2 16-Pin Y-Splitter Harness with Mounting Bra | 16-pin · Y-type | Universal | View | |
| Tester | OBD2 Female 16-Pin Jumper Tester for K-Line and CAN-bus | 16-pin · M · F | — | View |
-
1.27mm 16PIN Halogen-Free IDC Ribbon Cable Assembly
IDC Flat Cable -
2.54mm Single-Row IDC Ribbon Cable Finished Product Assembly
IDC Flat Cable -
Jiatel 2.54mm IDC Flat Ribbon Cable
IDC Flat Cable -
Jiatel 2.54mm IDC Flat Ribbon Cable (6-64PIN)
IDC Flat Cable -
Jiatel 2.54mm IDC to Box Header Flat Cable Assembly
IDC Flat Cable -
Jiatel IDC to Box Header Flat Ribbon Cable Assembly
IDC Flat Cable -
Micro Match IDC TO IDC D-SUB Flat Ribbon Cable
IDC Flat Cable -
-

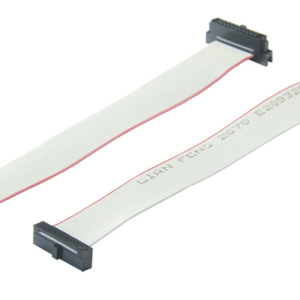

IDC 1.27mm Pitch Cable Assembly
IDC Flat Cable -
-
-
-
-
-
-
Frequently asked questions
What does IDC mean and why does it matter?
Insulation Displacement Connector. A metal fork pierces the insulation and cold-welds to the conductor, so no stripping is needed. A whole row terminates in one press, which suits multi-core ribbon in volume.
Which pitch should I pick for ribbon cable?
Board headers are commonly 2.54mm (0.1 in) and high-density cable ends are commonly 1.27mm (0.05 in). Choose from the board pitch first, then confirm the cable end fits the wire gauge.
Can an IDC connector be re-terminated?
Only a limited number of times. Each press cuts a new notch in the same conductor and reduces contact reliability. To change a harness, cut and terminate a fresh end rather than re-pressing in place.
IDC or crimp in a vibration environment?
Crimp with a housing is more stable for single wires under vibration. IDC relies on the strain-relief clip to hold multi-core flat ribbon in place.
