Female Headers
Female Headers (Socket Headers): Versatile and Reliable PCB Board-to-Board Interconnects
JIATEL’s Female Headers, commonly referred to as Socket Headers, are the essential mating components for Male Pin Headers, designed to establish flexible, pluggable, and reliable interconnections between Printed Circuit Boards (PCBs). Our product series is engineered to meet the stringent demands for reliability and versatility found across industrial, modular, and high-density electronic applications.
The Female Header consists of a durable plastic housing and precision sockets, which ensure a tight and stable electrical connection with the male pins. They represent the ideal choice for achieving efficient and cost-effective board-to-board interconnects.
1. Core Advantages: High Compatibility and Broad Application
Compared to simple pin headers, Female Headers offer distinct design flexibility and enhanced usability, making them indispensable components in modern electronics:
| Core Advantage | Customer Value Proposition (B2B Procurement Focus) |
| Multifunctional Plugging Capability | High Versatility. They not only mate directly with pin headers but also serve as Jumper Wire Recipients, significantly simplifying system configuration, field debugging, and prototyping. |
| High-Reliability Socket Structure | Low Contact Resistance. The precision-engineered socket ensures excellent, stable contact, which is critical for signal integrity, especially in high-speed or low-power applications. |
| High Density & Compact Layouts | Space Optimization. Available in 1 to 4 row configurations with flexible pin counts, supporting high-density stacking and compact PCB layouts, making them ideal for miniaturized devices. |
| Cost-Effectiveness | Efficient & Economical. Offers a proven, mature, and cost-friendly solution for establishing reliable, removable PCB interconnections. |
2. Product Classification and Key Specifications
We classify our Female Headers to address a variety of mounting, pitch, and application requirements, ensuring optimal design flexibility.
| Classification | Available Pitches | Row Config | Typical Application |
| Standard Headers | 1.27, 2.0, 2.54mm | 1 – 4 Rows | Industrial controls, test equipment, power boards. |

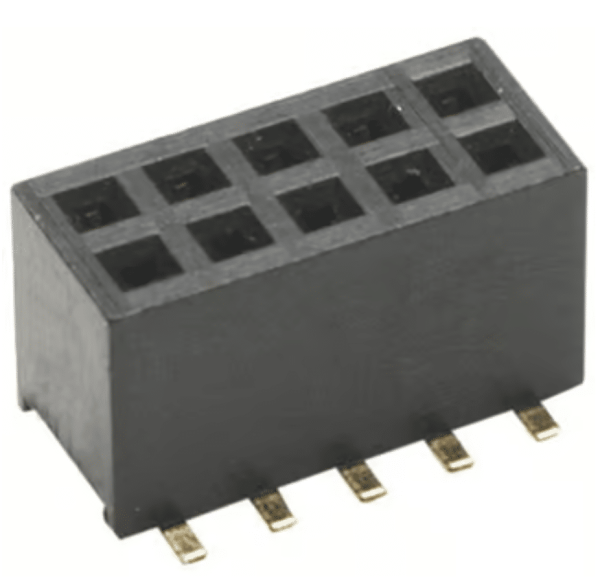

| SMT Female Headers | 0.8, 1.0, 1.27, 2.0mm | 1 – 2 Rows | Consumer electronics, high-density networking. |
| Stacking Headers | Custom Heights | 1 – 2 Rows | Medical devices, modular server hardware. |
| Right-Angle Type | 2.0, 2.54mm | 1 – 2 Rows | Side-entry connections, space-constrained kits. |
3. Female Header vs. Male Pin Header Summary
| Feature | Female Header (Socket Header) | Male Pin Header (Pin Header) |
| Structure | Plastic housing with internal sockets. | Plastic housing with exposed metal pins. |
| Primary Function | Receptacle for Male Pins and Jumper Wires. | Insertion into Female Sockets. |
| Pin Length | The tail pins are often longer than male connectors to accommodate versatile mounting and jumper wire connections. | Standardized pin lengths for optimal PCB insertion or socket mating. |
Looking for High-Reliability Precision Sockets?
While standard Female Headers are ideal for general board-to-board connections, certain applications like aerospace or high-end industrial testing require specialized Machined IC Sockets. These machined-pin versions offer superior gas-tight connections and higher mating cycles compared to stamped female headers.
Technical Tip: For mission-critical applications requiring the highest mating cycles and a gas-tight seal, consider our Machined IC Sockets. They offer a more robust alternative to standard stamped female headers for sensitive integrated circuits.
4. Custom Female Header Manufacturer: Customization & Expert Support
As a premier custom female header manufacturer, Jiatel understands that standard components don’t always fit. We specialize in solving clearance issues in complex multi-board stacks by offering:
-
Bespoke Configurations: Custom stack heights, non-standard tail lengths, and special pitches.
-
Premium Plating: Specific plating thickness from gold flash to 30u” to meet environmental needs.
-
Flexible Production: We provide these tailor-made solutions with No High MOQ, ensuring precision and reliability for both prototyping and mass production.
[Contact our engineering team today] for a 24h quote on your custom header requirements.
AA / AAA Battery Holder Selection
| Keystone P/N | Type | Mount / Contact | Cell | Jiatel Equivalent |
|---|---|---|---|---|
| 1022 | Dual AAA holder | SMT | 2 x AAA | View |
| 5228 | Dual AA spring contact | — | 2 x AA | View |
| 92 | Battery clip | PC pin (THM) | AA / 1/2AA | View |
| 5227 | Dual solid contact | — | 2 x AA | View |
| 5220 | Spring contact | Solder tab | A / AA / CR2 | View |
| 5202 | Spring contact | Slide-in | A / AA / CR2 | View |
| 56 | Battery contact | SMT | AAA / N / A23 | View |
| 57 | Battery contact | SMT | AA / CR2 | View |
| 5221 | Solid contact | Slide-in | A / AA / CR2 | View |
| 5219 | Solid contact | Solder tab | A / AA / CR2 | View |
Keystone part numbers are referenced for cross-reference only; Jiatel is not affiliated with Keystone Electronics.
Battery Clips & Spring Contacts Selection
Contact type drives retention force and assembly method. Match mount to your PCB process.
| Keystone P/N | Type | Mount / Contact | Cell | Jiatel Equivalent |
|---|---|---|---|---|
| 5228 | Dual AA spring contact | — | 2 x AA | View |
| 92 | Battery clip | PC pin (THM) | AA / 1/2AA | View |
| 5227 | Dual solid contact | — | 2 x AA | View |
| 5222 | Spring contact | Slide-in | AA | View |
| 56 | Battery contact | SMT | AAA / N / A23 | View |
| 5201 | Spring contact | Solder tab | A / AA | View |
| 5223 | Solid contact | Solder tab | AA | View |
Keystone part numbers are referenced for cross-reference only; Jiatel is not affiliated with Keystone Electronics.
OBD-II Harness Selection — 46 stock assemblies
Pick by interface and fitment. Figure gives the vehicle-side connector to the 16-pin OBD-II end. 15 adapters · 12 splitters · 8 cables · 5 connectors · 4 extensions · 1 jumper · 1 tester.
Request 2D Drawing & PinoutRequest a Custom Harness Quote
| Type | Model | Interface / config | Fitment | Detail |
|---|---|---|---|---|
| Adapter | Honda Motorcycle OBD2 16Pin to 6Pin Adapter Cable | 16-pin → 6-pin | Honda | View |
| Universal ECU Diagnostic Cable | — | Universal | View | |
| 12-Pin OBD Adapter Cable for 2012-2015 Tesla Model S & Mod | 12-pin | Tesla | View | |
| 14-Pin to 16-Pin OBD2 Adapter Cable for Mercedes-Benz Spri | 14-pin → 16-pin | Mercedes, Sprinter | View | |
| 20-Pin to 16-Pin OBD2 Adapter Cable for Tesla Model S & Mo | 20-pin → 16-pin | Tesla | View | |
| 6-Pin to OBD2 Adapter Cable for Harley-Davidson Motorcycle | 6-pin | Harley | View | |
| Benelli 6-Pin to 16-Pin OBD2 Adapter Cable for Motorcycle | 6-pin → 16-pin | Benelli | View | |
| Ducati 4-Pin to 16-Pin OBD2 Adapter Cable for Motorcycle D | 4-pin → 16-pin | Ducati | View | |
| Honda 3-Pin to 16-Pin OBD2 Adapter Cable | 3-pin → 16-pin | Honda | View | |
| J1708 6-Pin to OBD2 16-Pin Female Truck Adapter Cable | 6-pin → 16-pin · J1708 · M · F | — | View | |
| Mercedes-Benz 38-Pin to 16-Pin OBD2 Adapter Cable | 38-pin → 16-pin | Mercedes | View | |
| Mitsubishi 12-Pin to 16-Pin OBD2 Adapter Cable | 12-pin → 16-pin | Mitsubishi | View | |
| OBD2 Female Adapter Cable for Mercedes-Benz & Iveco Diagno | M · F | Mercedes, Iveco | View | |
| Polaris 8-Pin to 16-Pin OBD2 Diagnostic Adapter Cable | 8-pin → 16-pin | Polaris | View | |
| Tesla OBD2 Adapter | — | Tesla | View | |
| Cable | Audi 2x2 to 16-Pin OBD2 Diagnostic Cable for VAG Vehicles | 16-pin | Audi, VAG | View |
| BENZ SPRINTER 14PIN to 16PIN OBD2 Cable | 14-pin → 16-pin | Mercedes, Sprinter | View | |
| BMW ENET Cable | OBD2 to RJ45 Diagnostic Harness | RJ45 | BMW | View | |
| OBD2 16Pin Open-End Cable | 16-pin · Open end | — | View | |
| Best-Selling Custom J1939 9-Pin to OBD2 16-Pin Diagnostic | 9-pin → 16-pin · J1939 9-pin | Cummins | View | |
| Custom Truck Diagnostic Cable | 9-pin · DB62 D-SUB · J1939 9-pin · Deutsch 9-pin | Custom | View | |
| OBD2 16Pin to 6Pin Harley, Kawasaki, Yamaha, Suzuki Motorc | 16-pin → 6-pin | Harley, Kawasaki, Yamaha, Suzuki | View | |
| OBD2 Dashcam Power Cable | Plug-in | — | View | |
| Connector | Dongfeng Heavy-Duty Truck OBD Diagnostic Cable | 16-pin → 9-pin · M | Cummins, Dongfeng | View |
| Large-Size OBD2 Male Connector Housing | M | — | View | |
| OBD Copper Pin Connector Housing | — | Mitsubishi, Subaru | View | |
| OBD2 Male Connector | M | — | View | |
| Universal 6-Pin Diagnostic to JST 04R-JWPF-VSLE-S Connecto | 6-pin · JST | Universal | View | |
| Extension | For BMW Hidden Features Coding | RJ45 | BMW | View |
| OBD 8-Pin Switch Extension Cable with Bluetooth Connector | 8-pin | — | View | |
| OBD2 One-to-Two Extension Cable for Cars: Volkswagen, Audi | 1→2 | Audi, VW, Skoda | View | |
| OBD2 Extension Cable | M · F | — | View | |
| Jumper | K+CAN Universal Jumper Cable for ECU Bench Programming | — | Universal | View |
| Splitter | OBD2 16-Pin Male-to-Female Y-Splitter Extension Cable | 16-pin · M · F · Y-type | Universal | View |
| Custom Tesla Model 3/Y OBD2 Diagnostic Harness | 26-pin → 16-pin | Tesla | View | |
| L-Shaped 90-Degree OBD2 Splitter Extension Cable | 16-pin · 90° L · 0.3 m | — | View | |
| L-Shaped OBD2 One-to-Three Splitter Extension Cable | 1→3 · 90° L | — | View | |
| L-Shaped OBD2 Splitter Extension Cable | 1→2 · 90° L | — | View | |
| L-Shaped OBD2 Splitter Extension Cable | 16-pin · 1→2 · 90° L · Flat ribbon | — | View | |
| OBD2 Flat Splitter Extension Cable | 16-pin · 1→3 | — | View | |
| OBD2 Splitter Cable | 1→2 | — | View | |
| OBD2 Splitter Extension Cable | 16-pin · 1→2 · 0.15 m | — | View | |
| OBD2 Y Splitter Extension Cable | 16-pin · 1→2 · Y-type | Toyota, Kia | View | |
| OBD2 to 8-Port DB9 Female Splitter Cable | DB9 · M · F · 8-port | — | View | |
| Universal OBD2 16-Pin Y-Splitter Harness with Mounting Bra | 16-pin · Y-type | Universal | View | |
| Tester | OBD2 Female 16-Pin Jumper Tester for K-Line and CAN-bus | 16-pin · M · F | — | View |
-
2-Pin Round Hole Female Header Socket
Female Headers -
1×4 Round Hole Female Header Socket
Female Headers -
High – Quality 1*2 Pin Female Header Socket for PCB
Female Headers -
1×4 Pin Female Header Socket
Female Headers -
1×5 Female Header Socket
Female Headers -
1*6 Pin Female Header Socket
Female Headers -
1×7 Female Header Socket
Female Headers -
1*8 Pin Female Header Socket
Female Headers -
2×20 Female Header Socket
Female Headers -
2X4 Female Header Socket
Female Headers -
2×8 Female Header Socket
Female Headers -
2×30 Female Header Socket
Female Headers -
3*12 (36 Pin) Female Header Socket
Female Headers
Frequently asked questions
Female header vs socket strip, is it the same thing?
Same family, different naming. Both are female receptacles with spring contacts. The naming difference does not affect selection.
Machined round vs stamped square female headers?
Machined round holes use individual turned contacts, giving longer mating life and more consistent contact. Stamped square holes cost less and suit fixed assemblies with few insertions.
Can I get elevated headers for board stacking?
Yes, choose the plastic height for the required stack. The taller the header, the tighter the straightness and alignment requirement, so add guide posts.
